Instrumental caster, 304 stainless steel fork, TPR wheel, ball bearing
Stainless steel 304 caster housing |
TPR wheel tread,plastic center |
Ball bearing |
P114-34E050x20 P114-34E075x25 P114-34EA100x30 P114-34E125x30 D114-34E050x20 D114-34E075x25 D114-34EA100x30 D114-34E125x30 P114-34E050x20S P114-34E075x25S P114-34EA100x30S P114-34E125x30S

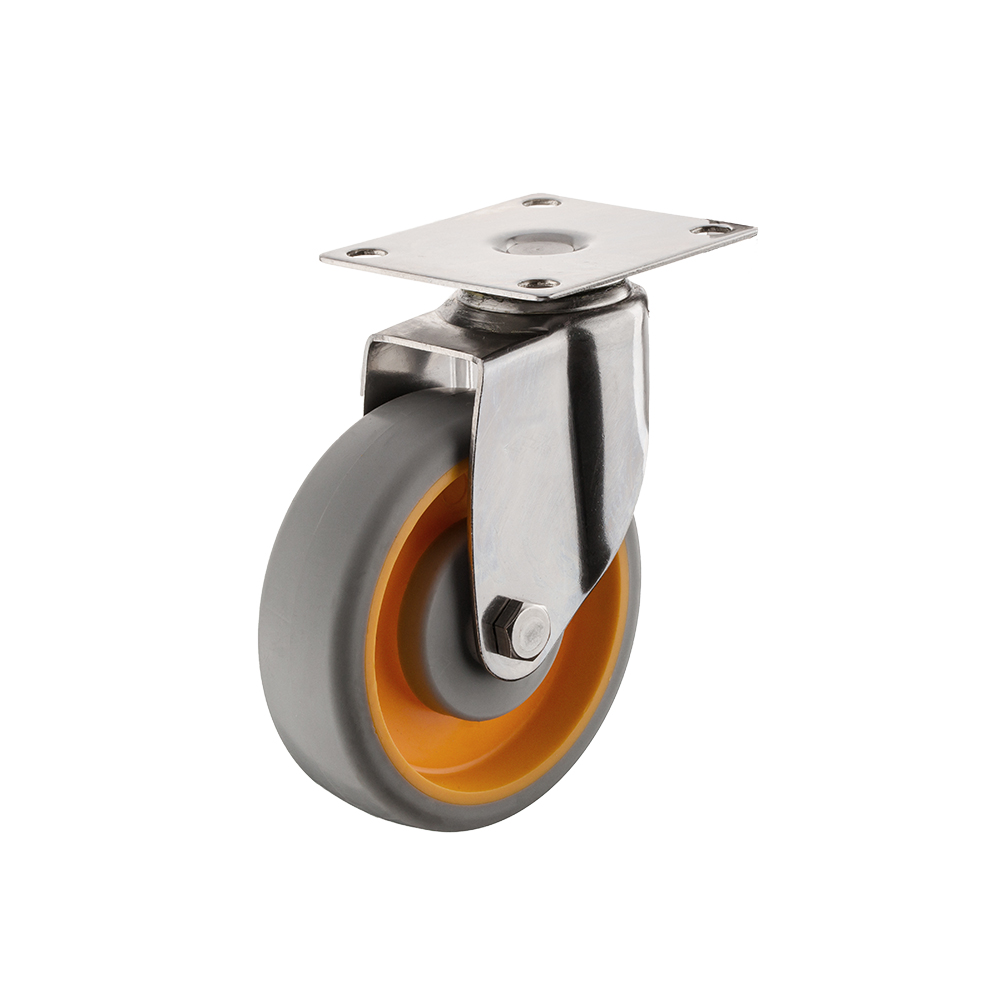

Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Plate Hole (mm) | Plate Dimension (mm) | Plate Hole Spacing (mm) | Barrier Width (mm) |
P114-34E050x20 | 50 | 20 | 50 | 75 | 30 | 6.3 | 60x60x2 | 43×43 | 2 |
P114-34E075x25 | 75 | 25 | 60 | 100 | 30 | 6.3 | 60x60x2 | 43×43 | 2 |
P114-34EA100x30 | 100 | 30 | 80 | 130 | 30 | 9 | 77x67x2 | 60×50 | 2 |
P114-34E125x30 | 125 | 30 | 100 | 155 | 30 | 9 | 77x67x2 | 60×50 | 2 |

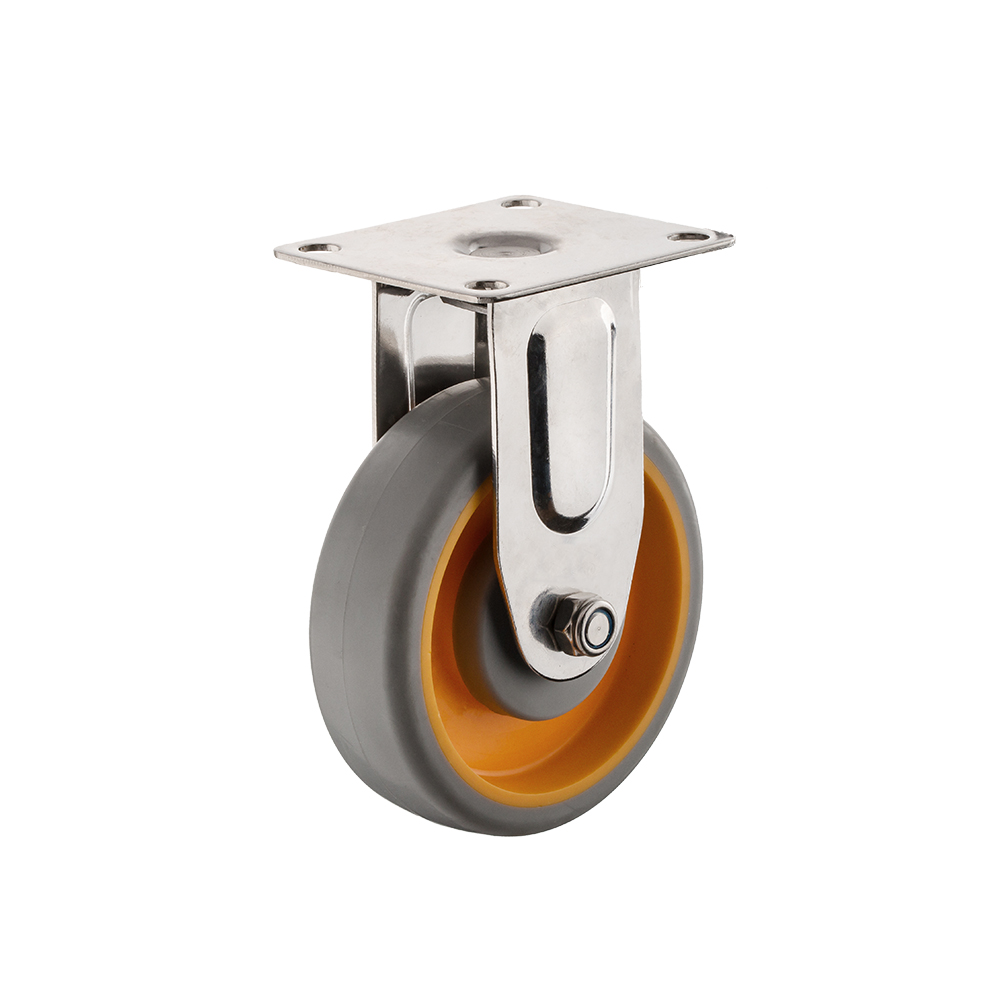

Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Plate Hole (mm) | Plate Dimension (mm) | Plate Hole Spacing (mm) | Barrier Width (mm) |
D114-34E050x20 | 50 | 20 | 50 | 75 | / | 6.3 | 60x60x2 | 43×43 | 2 |
D114-34E075x25 | 75 | 25 | 60 | 100 | / | 6.3 | 60x60x2 | 43×43 | 2 |
D114-34EA100x30 | 100 | 30 | 80 | 130 | / | 9 | 77x67x2 | 60×50 | 2 |
D114-34E125x30 | 125 | 30 | 100 | 155 | / | 9 | 77x67x2 | 60×50 | 2 |

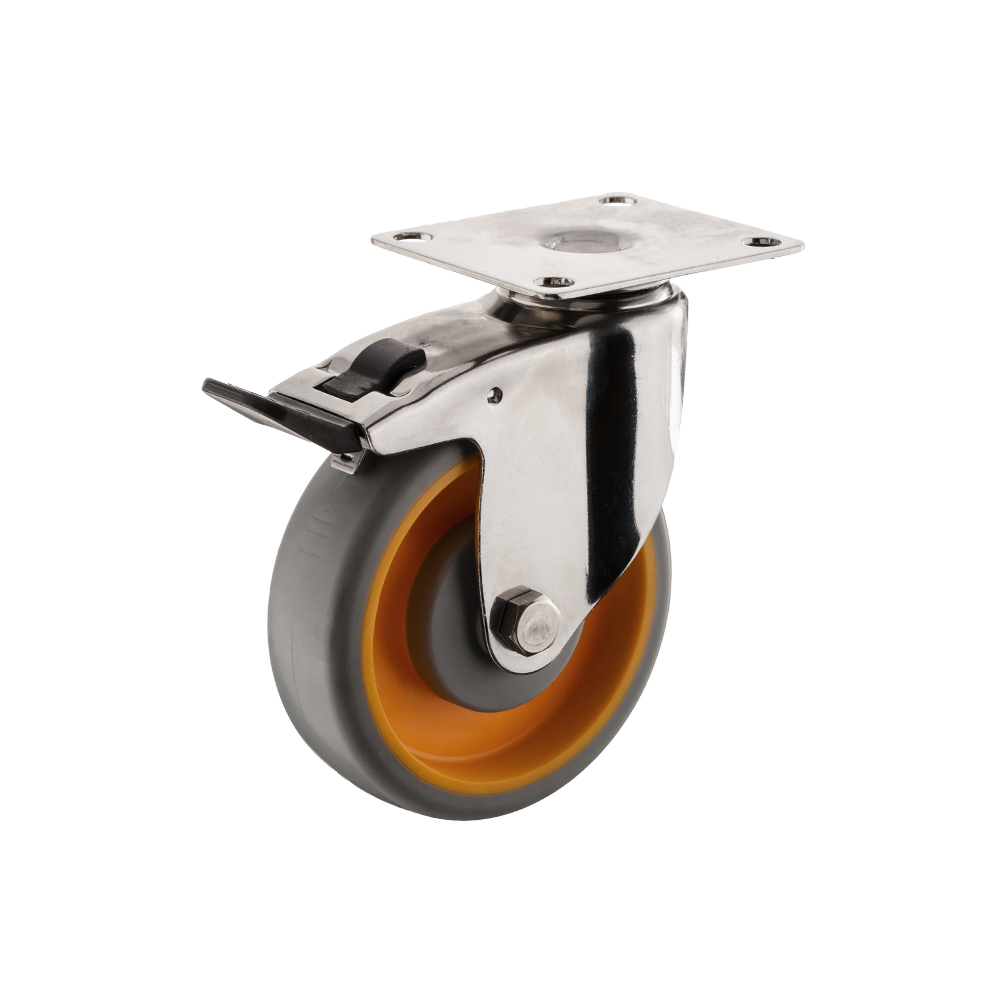

Item Code | Wheel Diameter (mm) | Wheel Thick (mm) | Weight (kg) | Total Height (mm) | Eccentric Throw (mm) | Plate Hole (mm) | Plate Dimension (mm) | Plate Hole Spacing (mm) | Barrier Width (mm) |
P114-34E050x20S | 50 | 20 | 50 | 75 | 30 | 6.3 | 60x60x2 | 43×43 | 2 |
P114-34E075x25S | 75 | 25 | 60 | 100 | 30 | 6.3 | 60x60x2 | 43×43 | 2 |
P114-34EA100x30S | 100 | 30 | 80 | 130 | 30 | 9 | 77x67x2 | 60×50 | 2 |
P114-34E125x30S | 125 | 30 | 100 | 155 | 30 | 9 | 77x67x2 | 60×50 | 2 |
